How SEISMIC-RNA Works

SEISMIC-RNA fully processes mutational profiling data from raw sequencing reads to finished structure models and graphs. These figures illustrate what happens during each step of data processing.

FASTQ files

../_images/reads.png

seismic align

../_images/align.png

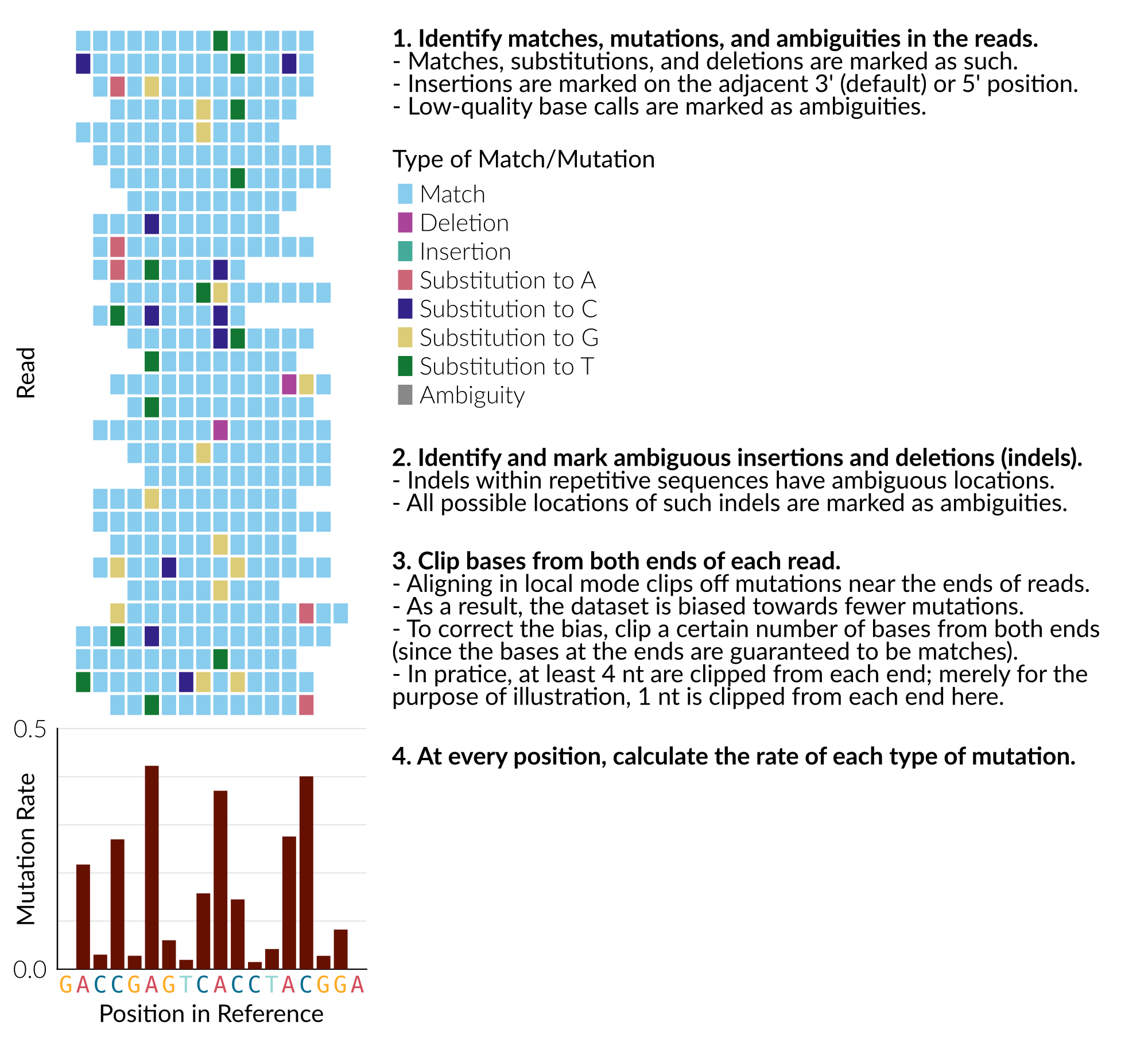

seismic idmut

../_images/idmut.png

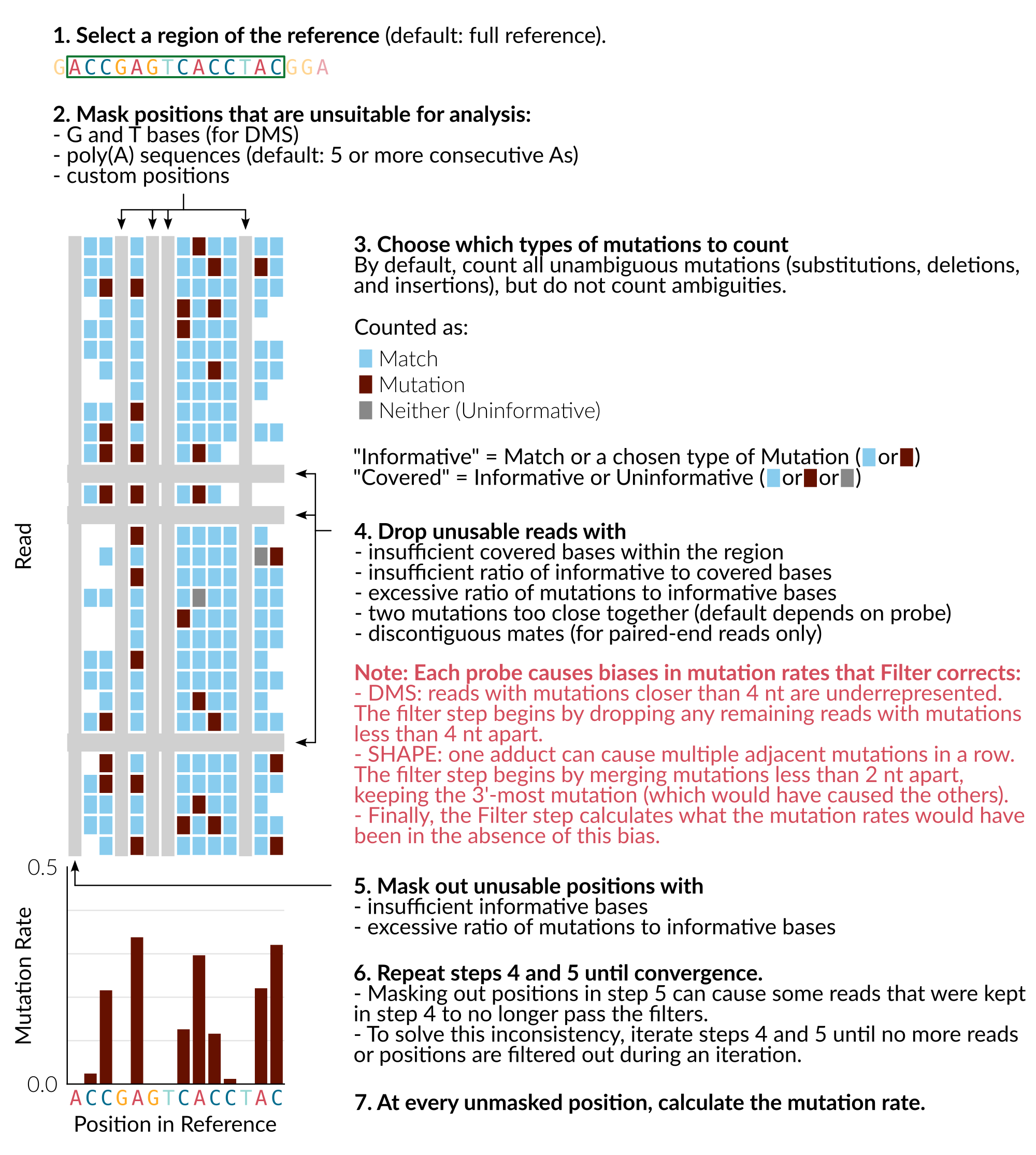

seismic filter

../_images/filter.png

seismic cluster

../_images/cluster.png

seismic fold

../_images/fold.png
